This is just a small selection of the Jacking Equipment we supply and maintain if you don’t see what you are looking for or you require advice on the best Equipment for you please don’t hesitate contact us for a personal and friendly service
[pdfviewer beta=”true/false”]http://davon.co/wp-content/uploads/2018/10/Tec-Beam.pdf[/pdfviewer]

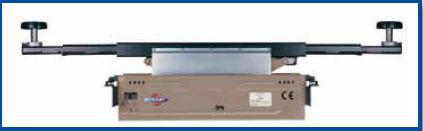

Consul Jacking beam 0.20 ZH
Description:
Pneumatic-hydraulic jacking beam with capacity of 2.000 kg and 2.600 kg for Consul lift with platforms.
Design features:
Lifting height approx. 310 mm
Pick-up range approx. 780-1.610 mm
Max. height approx. 430 mm
Air pressure 8-10 bar
Specifications:
Capacity 2000 kg Lifting
height 250 mm
Lifting width 780 – 1.610 mm
Compressed air connection 8 – 10 bar
Consul Jacking beam 0.20 ZH
Description:
Axial-crossbeam 3.200 kg for jacking beam: Safe lifting of vehicles with lifting points from 625 up to 1.230 mm (e.g Sprinter, VW-LT 2).
Load lifting pad is height-adjustable via telescyopable threaded spindles.
Very narrow through double-Specifications
Capacity 3.200 kg
Lifting width 625 – 1.230mm
